Arc
What are Arcs in Symphoni?
Initially designed to simulate the feeling of conducting in tempo, arcs are notes that challenge the player to swing their hand in various directions, in the aims of matching the beat of a song.
Arc Properties
| Property | Description |
|---|---|
| Hand | Dictates which hand should swing at the note (dominant hand, non-dominant hand, both hands) |
| Timestamp | The song timestamp in which note perfectly overlaps with ring |
| Angle | Indicates the direction of where the arc flies from (ranging from 0-360 degrees) |
| Span | Indicates how large the arc is (ranging from 0-360 degrees) |
When Creating a New Arc
- Arcs can be snapped to fixed angles by toggling "Snap" in Create Tool Property
When Editing an Existing Arc
-
You can select an existing arc by:
- Hover & click on an arc in the viewport to select it
- Click on the arc in the timeline window
-

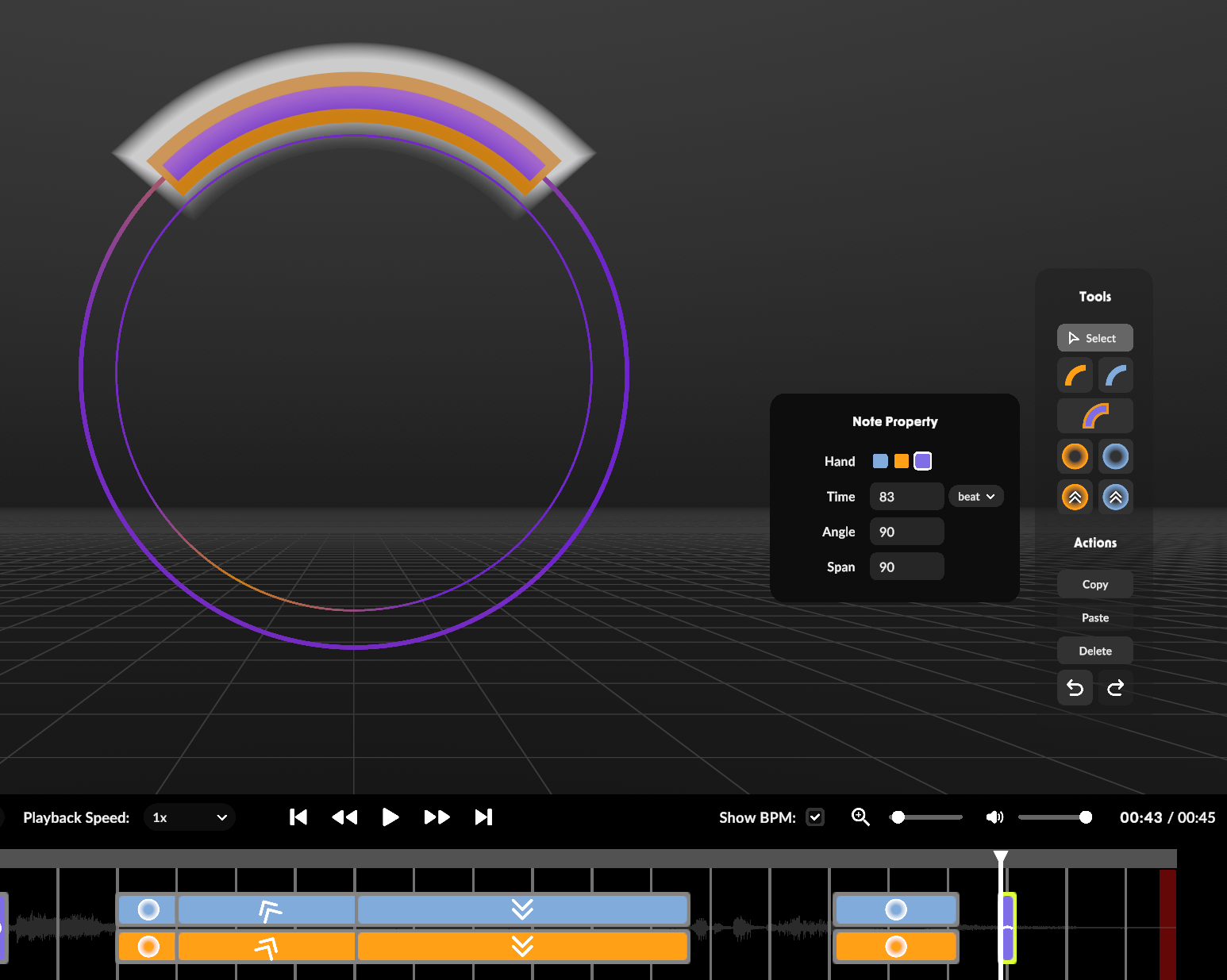

Upon selecting an arc, you can make edits to it in the Note Property Window
- Timestamp can be modified either by seconds or beat time
Additional Tips and Tricks
- In viewport, you can modify the arc's angle by dragging the arc around the ring
